Titanium Grade 5 (6Al-4V)

3.7165 / 3.7164.1   /   UNS R56400

Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class, and is also the most common of all titanium alloys. The alloy is castable and is utilized “as cast” in sporting goods. The wrought material is used in aerospace, medical, and other applications where moderate strength, good strength to weight, and favorable corrosion properties are required.

Stock program

Bars: ASTM B 348, AMS 4928
Sheets/Plates: ASTM B 265, AMS 4911

Bars

  • 5.00 mm
  • 8.00 mm
  • 10.00 mm
  • 12.00 mm
  • 16.00 mm
  • 18.00 mm
  • 20.00 mm
  • 25.00 mm
  • 30.00 mm
  • 35.00 mm
  • 40.00 mm
  • 42.00 mm
  • 45.00 mm
  • 50.00 mm
  • 55.00 mm
  • 60.00 mm
  • 65.00 mm
  • 70.00 mm
  • 80.00 mm
  • 90.00 mm
  • 100.00 mm
  • 110.00 mm
  • 115.00 mm
  • 120.00 mm
  • 125.00 mm
  • 130.00 mm
  • 140.00 mm
  • 150.00 mm
  • 160.00 mm
  • 165.00 mm
  • 170.00 mm
  • 180.00 mm
  • 190.00 mm
  • 200.00 mm
  • 220.00 mm
  • 230.00 mm
  • 250.00 mm
  •

Sheets / Plates

  • 0.40 mm
  • 0.50 mm
  • 0.60 mm
  • 0.80 mm
  • 1.00 mm
  • 1.20 mm
  • 1.40 mm
  • 1.60 mm
  • 1.80 mm
  • 2.00 mm
  • 2.10 mm
  • 2.30 mm
  • 2.50 mm
  • 3.18 mm
  • 4.00 mm
  • 4.76 mm
  • 5.00 mm
  • 6.00 mm
  • 6.35 mm
  • 8.00 mm
  • 9.53 mm
  • 10.00 mm
  • 12.00 mm
  • 12.70 mm
  • 14.00 mm
  • 15.00 mm
  • 16.00 mm
  • 19.05 mm
  • 25.00 mm
  • 32.00 mm
  • 35.00 mm
  • 40.00 mm
  • 45.00 mm
  • 50.00 mm
  • 55.00 mm
  • 60.00 mm
  • 63.50 mm
  • 65.00 mm
  • 70.00 mm
  • 76.20 mm
  • 80.00 mm
  • 85.00 mm
  • 90.00 mm
  • 100.00 mm
  • 110.00 mm
  • 155.00 mm

Downloads

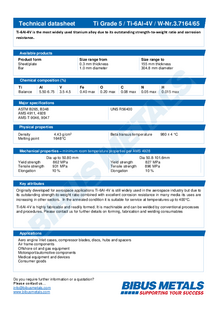

Datasheet Titanium Gr. 5 Ti6-4 (EN)
Limiting
Ti   Balance
Al   5.50 - 6.75 %
V   3.50 - 4.50 %
Fe max. 0.40 %
O max. 0.20 %
C max. 0.08 %
N max. 0.05 %
H max. 0.015 %
Density
g/cm³   4.43
lb/in³   0.160
